Add Engine Coolant (Main)

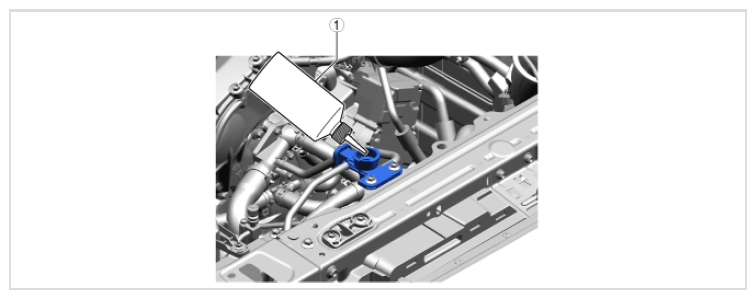

Add engine coolant (main) to the top surface of the radiator filler port.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No	Refer to
1	Bottle

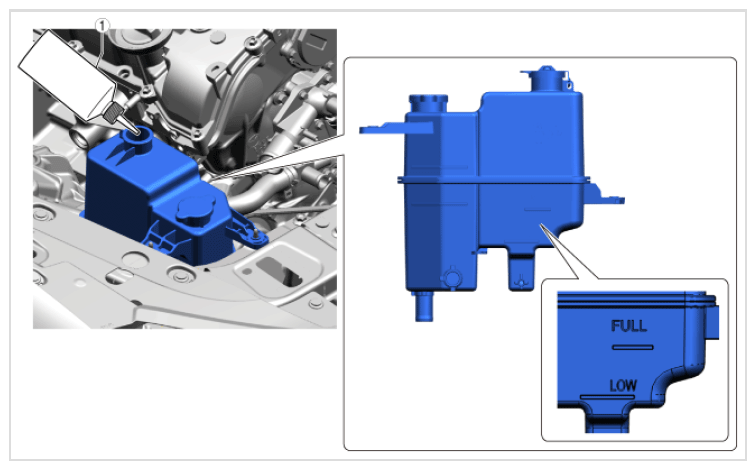

Add engine coolant (main) to the coolant reserve tank up to the FULL line.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No	Refer to
1	Bottle

TOTAL COOLANT AMOUNT (REFERENCE)

Specification	Capacity
With e-SKYACTIV PHEV	8.6 L {9.1 US qt, 7.6 Imp qt}
Without e-SKYACTIV PHEV	7.0 L {7.4 US qt, 6.2 Imp qt}

After the engine coolant (main) is added up to the FULL line of the coolant reserve tank, add an additional 0.26 L {0.27 US qt, 0.23 Imp qt.}.
