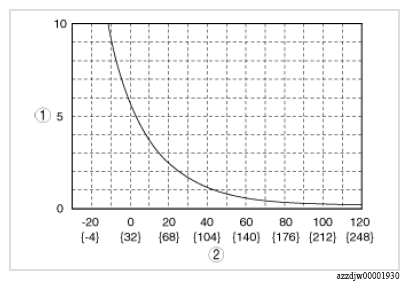

Characteristic graph

G16707090Courtesy of MAZDA MOTORS CORP.
COMPONENT OPERATIONS

Component No Refer to
1 Resistance (kilohm)
2 Coolant temperature (°C {°F})
