Troubleshooting Procedure

WARNING: This page is about a different car, the 2024 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

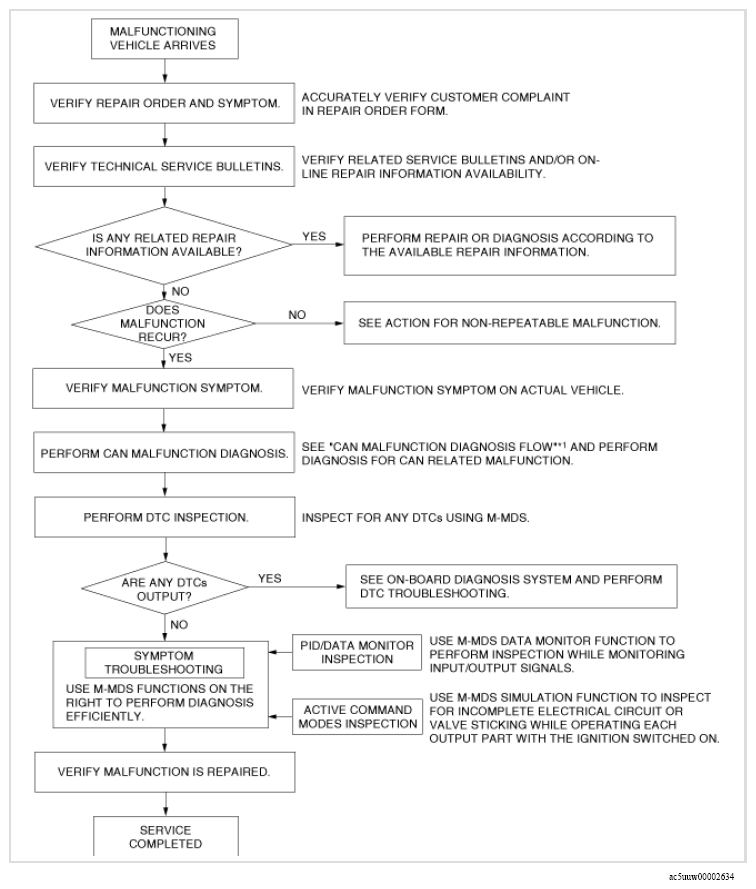

G16332629Courtesy of MAZDA MOTORS CORP.

*1: (See  CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-A (VIN M, VIN L)]  .) (See  CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-A (VIN Y)]  .)
