DTC B1D07:11 [Front Body Control Module (FBCM)]: Notes
WARNING: This page is about a different car, the 2024 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1D07:11 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Turn light (RH) circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to ground in the turn light (RH) circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front body control module (FBCM) connector or terminal malfunction
- Front turn light bulb (RH) malfunction
- Front combination light (RH) connector or terminal malfunction

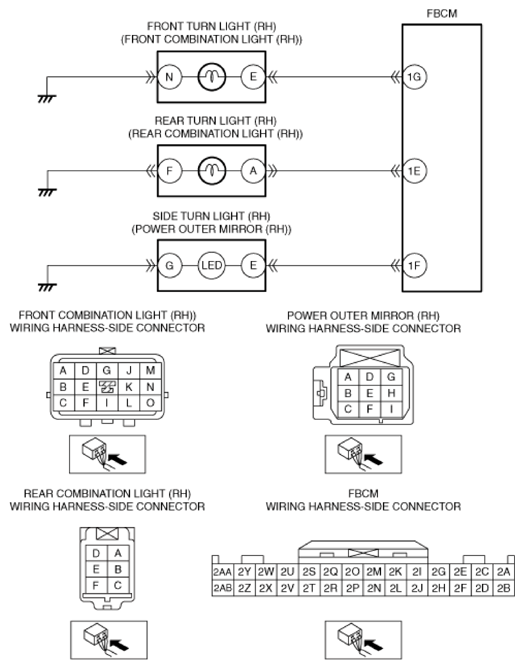

- Short to ground in wiring harness between front combination light (RH) terminal E and front body control module (FBCM) terminal 1G
- Rear turn light bulb (RH) malfunction
- Rear turn light (RH) connector or terminal malfunction
- Short to ground in wiring harness between rear combination light (RH) terminal A and front body control module (FBCM) terminal 1E
- Power outer mirror (RH) connector or terminal malfunction
- Side turn light (RH) malfunction
- Short to ground in wiring harness between power outer mirror (RH) terminal E and front body control module (FBCM) terminal 1F
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
