DTC B1088:88 [Front Body Control Module (FBCM)]: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1088:88 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description LIN communication error
Detection condition
  • LIN bus communication line malfunction detected for 1s or more
Fail-safe Not applicable
Possible cause
  • Malfunction in LIN bus communication line

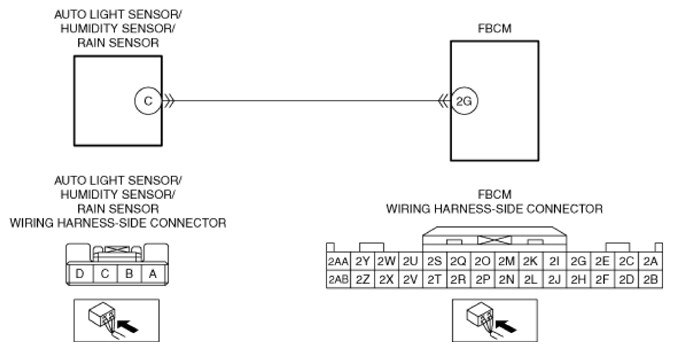

    • Auto light sensor/humidity sensor/rain sensor terminal C-Front body control module (FBCM) terminal 2G (With auto light sensor/humidity sensor/rain sensor)
  • Front body control module (FBCM) malfunction
G16332607Courtesy of MAZDA MOTORS CORP.
