Power Brake Unit Vacuum Sensor Removal/Installation
WARNING: This page is about a different car, the 2024 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION [VIN Y] .) (See BATTERY REMOVAL/INSTALLATION [VIN M] .) (See BATTERY REMOVAL/INSTALLATION [VIN L] .)

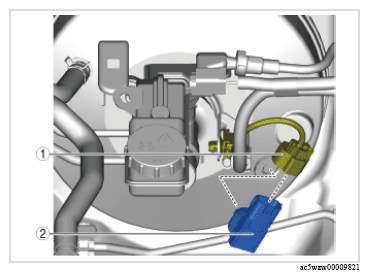

- Remove in the order indicated in the table.POWER BRAKE UNIT VACUUM SENSOR COMPONENT OPERATIONS
Component No. Refer to 1 Connector 2 Power brake unit vacuum sensor - Install in the reverse order of removal.
