Tie Rod Disassembly Note

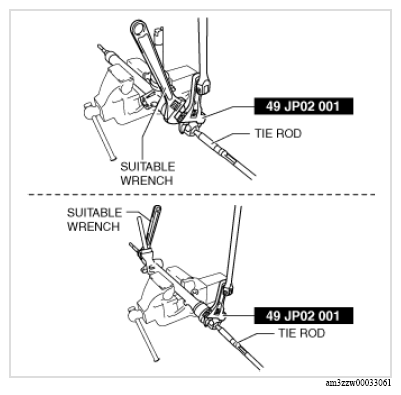

Lock the steering gear against rotation using a wrench and remove the tie rod using the SST.

G16375425

Courtesy of MAZDA MOTORS CORP.
