Engine Coolant Temperature (ECT) Sensor Inspection (VIN M)
>>
With EGR Cooler
>>

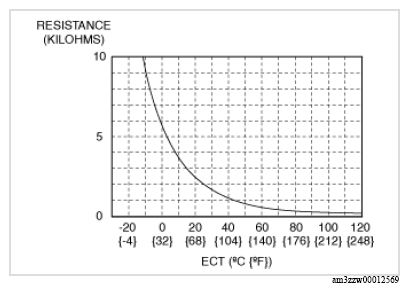

Specification (Reference)
Specification (Reference)
ECT (°C {°F})
Resistance (Kilohms)
20 {68}
Approx. 2.45
80 {176}
Approx. 0.318
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
