Passenger Compartment Temperature Sensor Inspection: Motor

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the passenger compartment temperature sensor. (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)

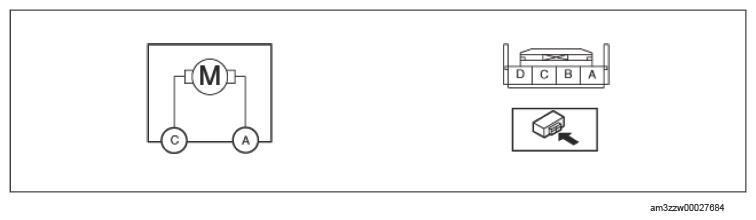

  3. Connect battery positive voltage to passenger compartment temperature sensor terminal A, connect terminal C to ground, and then verify its operation.
    G14582368Courtesy of MAZDA MOTORS CORP.
    • If there is any malfunction, replace the passenger compartment temperature sensor.
