Ignition coil/ion sensor Removal Note

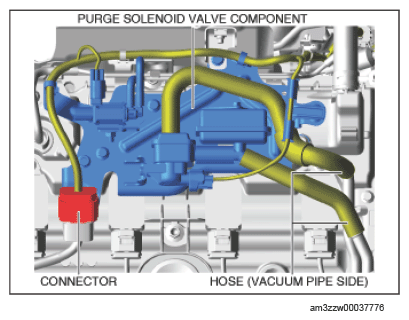

  1. Disconnect the connector and hoses shown in the figure below.
    G14579796Courtesy of MAZDA MOTORS CORP.

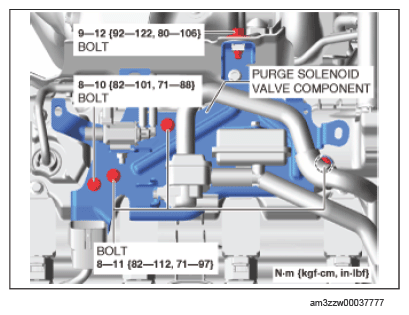

  2. Remove the bolts shown in the figure below.
    Fig 1: Purge Solenoid Valve Component Bolts With Torque Specifications
    G14579797Courtesy of MAZDA MOTORS CORP.

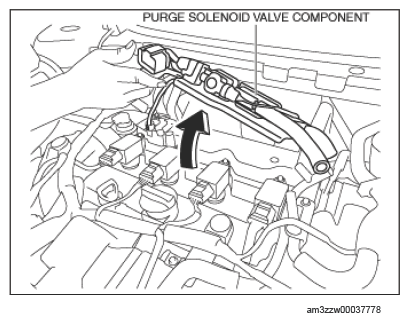

  3. Set the purge solenoid valve component aside as shown in the figure below.
    G14579798Courtesy of MAZDA MOTORS CORP.
  4. Remove the ignition coil/ion sensors.
