Steering Column Installation Note

CAUTION:

Always lock the adjusting lever to prevent damage to the steering column. In addition, do not unlock the adjusting lever until the steering column installation is completed.
If the steering column is installed, install it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is installed in the incorrect order.

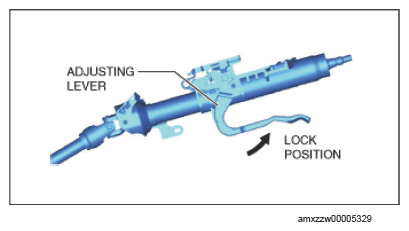

Verify that the adjusting lever of the steering column is locked.

Courtesy of MAZDA MOTORS CORP.
Install the clip to the steering column.

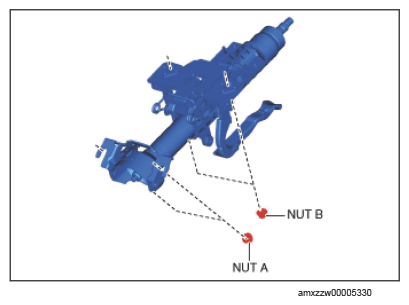

Temporarily install the steering column to the dashboard member using nuts A and B.

Courtesy of MAZDA MOTORS CORP.

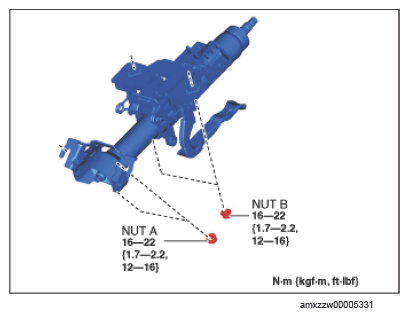

Tighten the nuts in the order of nut A and nut B.

Fig 1: Steering Column Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

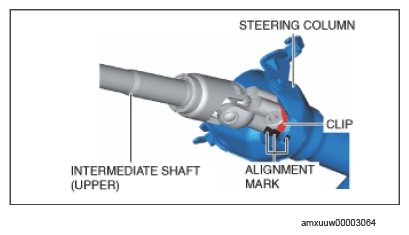

Install the intermediate shaft (upper) with the alignment marks on the intermediate shaft (upper) and the clip, which were marked before removing the steering column, aligned.

Courtesy of MAZDA MOTORS CORP.
NOTE:

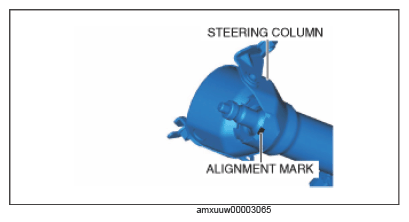

- When replacing the steering column with a new one, place an alignment mark on the new part in the same position as the removed steering column.
Courtesy of MAZDA MOTORS CORP.

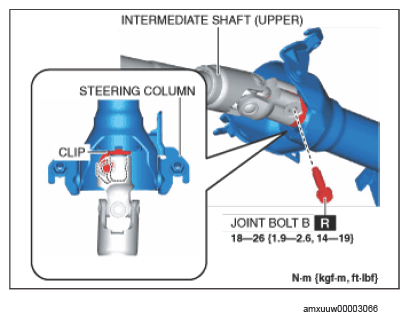

Verify that the semicircular shape of the clip and U-shape groove of the steering column matches and joint bolt B can be inserted.

Fig 2: Joint Bolt B Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the joint bolt B.
