On-Board Diagnostic - Start Stop Unit
>>

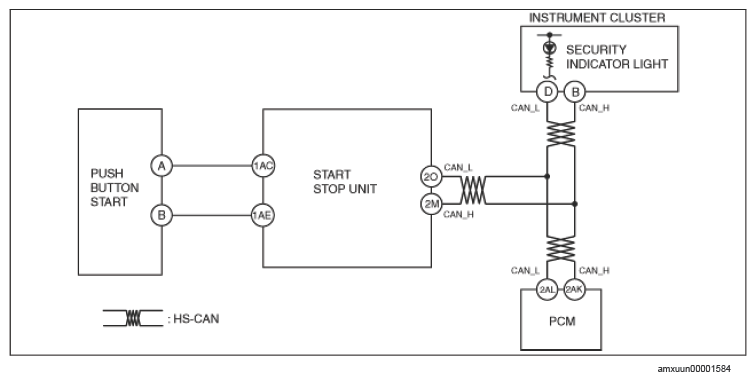

On-Board Diagnostic Wiring Diagram [Start Stop Unit]
>>
Immobilizer System
Immobilizer System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
