DTC U3000:1C (VEHICLE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE - WITH 360°VIEW MONITOR SYSTEM
| System malfunction location |

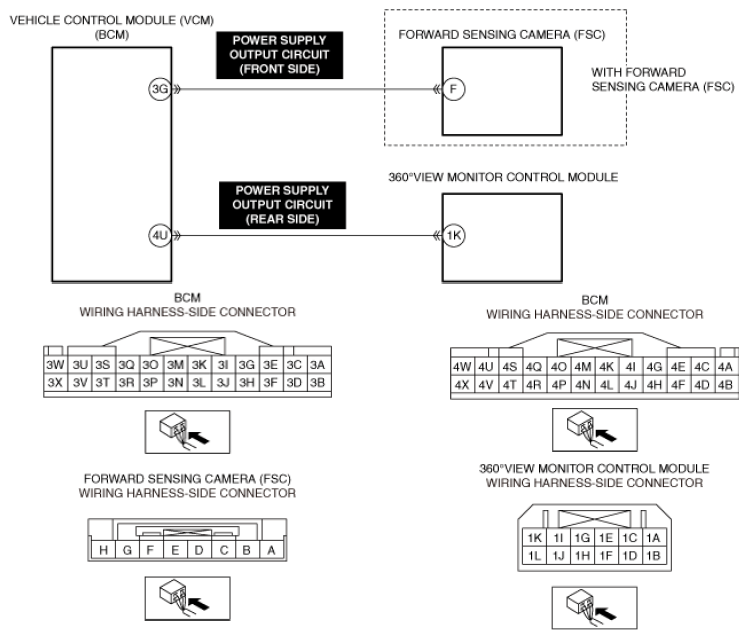

Malfunction in vehicle control module (VCM) power supply output circuit |
| Detection condition |
- The vehicle control module (VCM) detects a malfunction in the vehicle control module (VCM) power supply output circuit for 10 s.
|
| Fail-safe |
(See DTC TABLE [VEHICLE CONTROL MODULE]
.) |
| Possible cause |
- The vehicle control module (VCM) stores DTCs.
- Vehicle control module (VCM) low power supply voltage input
- Vehicle control module (VCM) high power voltage input
- Body control module (BCM) connector or terminal malfunction
- 360° view monitor control module connector or terminal malfunction
- Short to ground in power supply output circuit (rear side)
- Short to power supply in power supply output circuit (rear side)
- Open circuit in power supply output circuit (rear side)
- Forward sensing camera (FSC) connector or terminal malfunction (with forward sensing camera (FSC))
- Short to ground in power supply output circuit (front side) (with forward sensing camera (FSC))
- Short to power supply in power supply output circuit (front side) (with forward sensing camera (FSC))
- Open circuit in power supply output circuit (front side) (with forward sensing camera (FSC))
- 360° view monitor control module malfunction
- Forward sensing camera (FSC) malfunction (with forward sensing camera (FSC))
- Vehicle control module (VCM) malfunction (built into body control module (BCM))
|
