Quick Diagnostic Chart

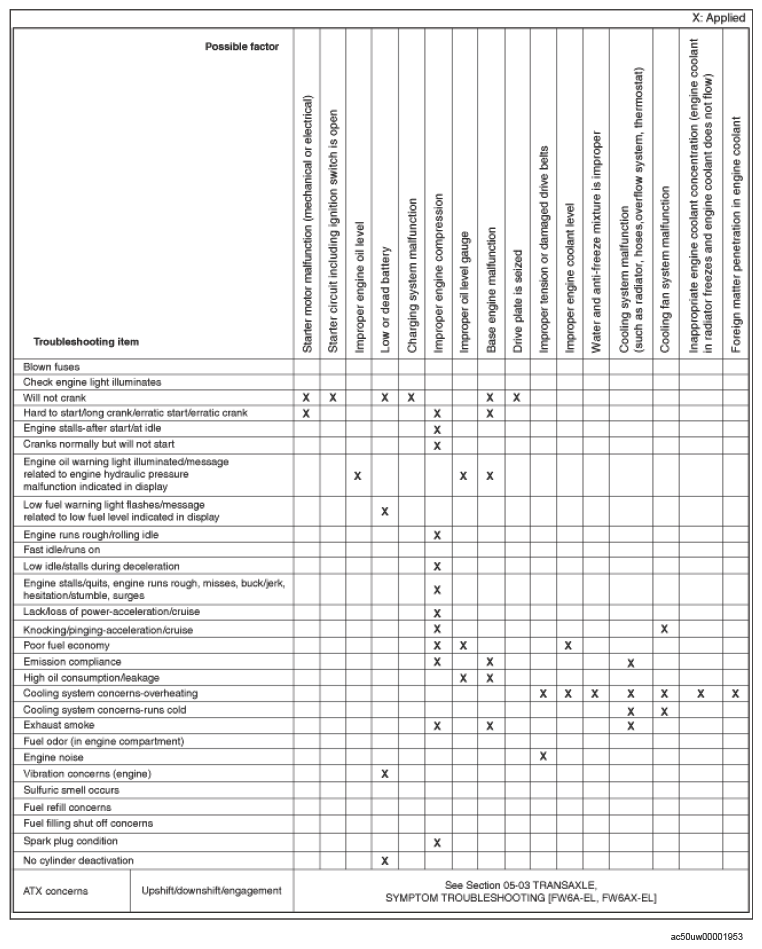

G15738804Courtesy of MAZDA MOTORS CORP.

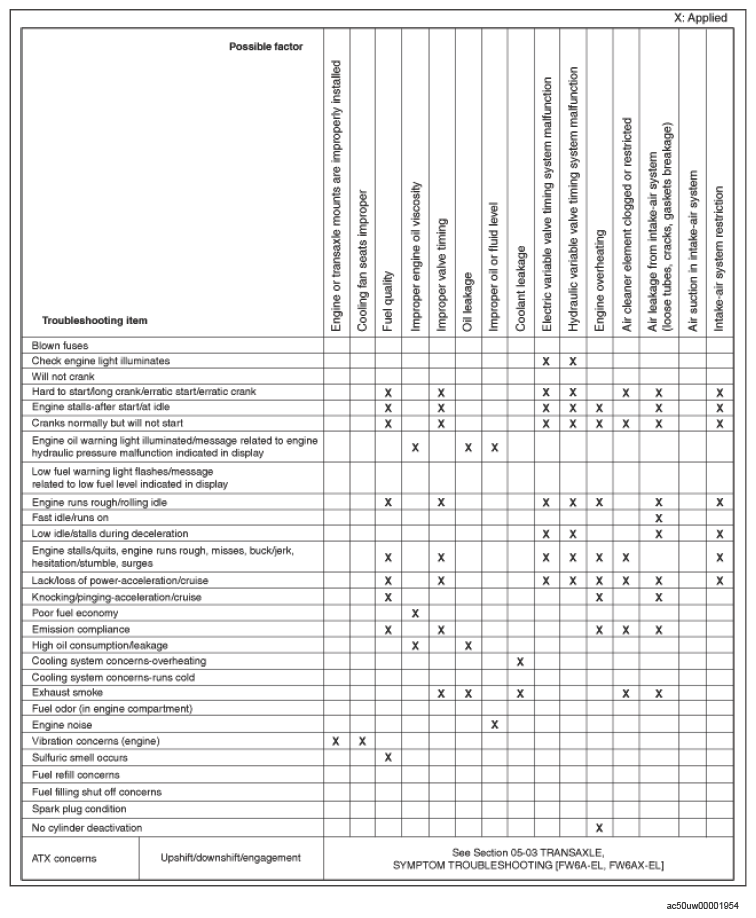

G15738805Courtesy of MAZDA MOTORS CORP.

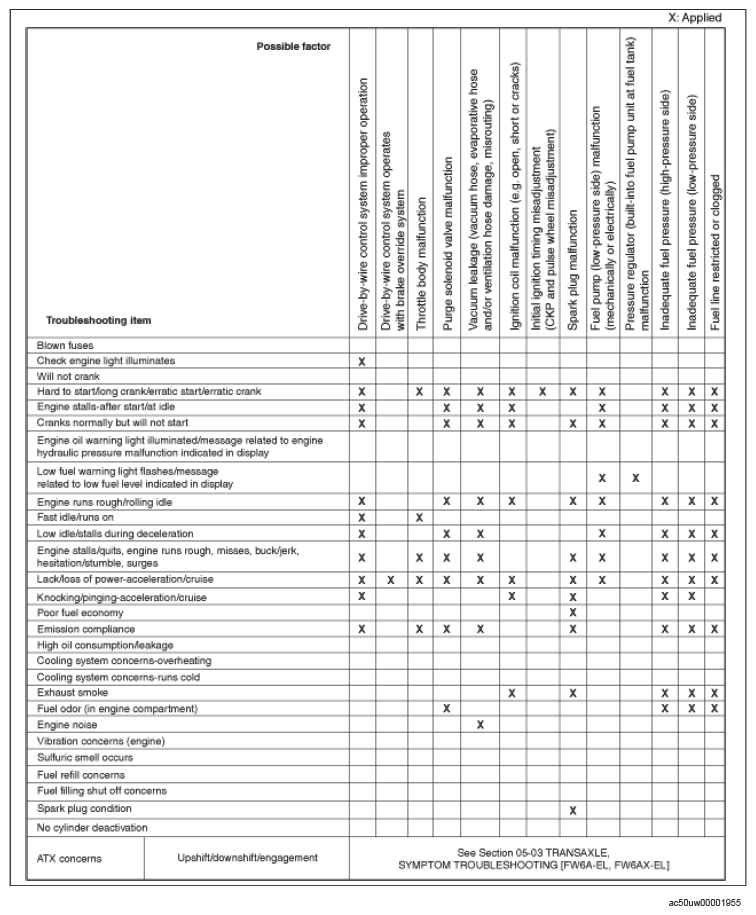

G15738806Courtesy of MAZDA MOTORS CORP.

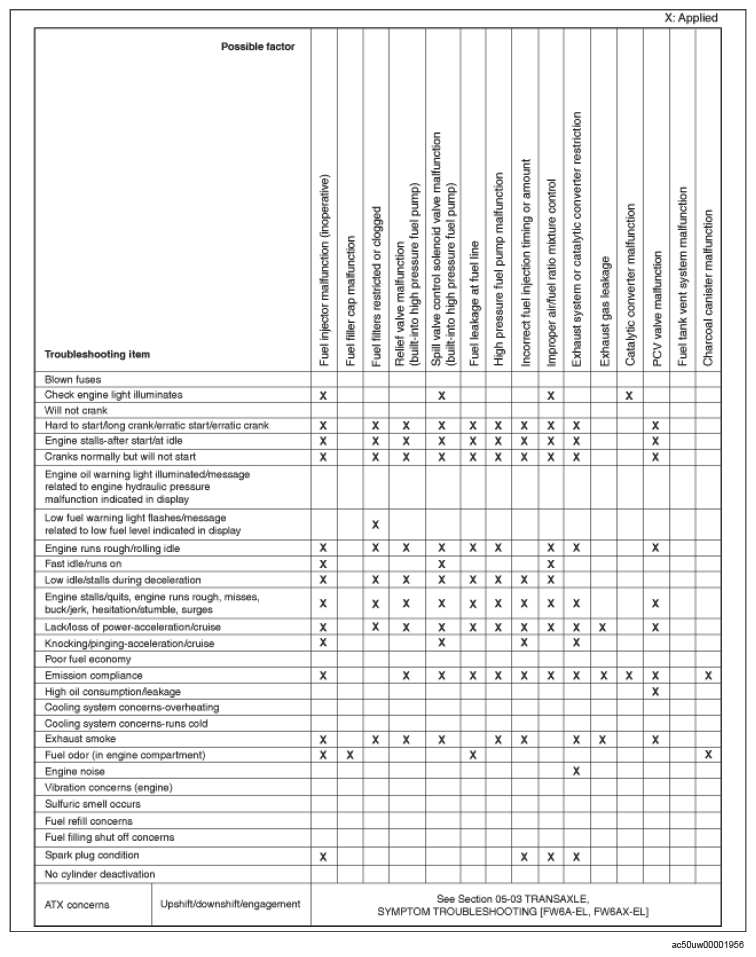

G15738807Courtesy of MAZDA MOTORS CORP.

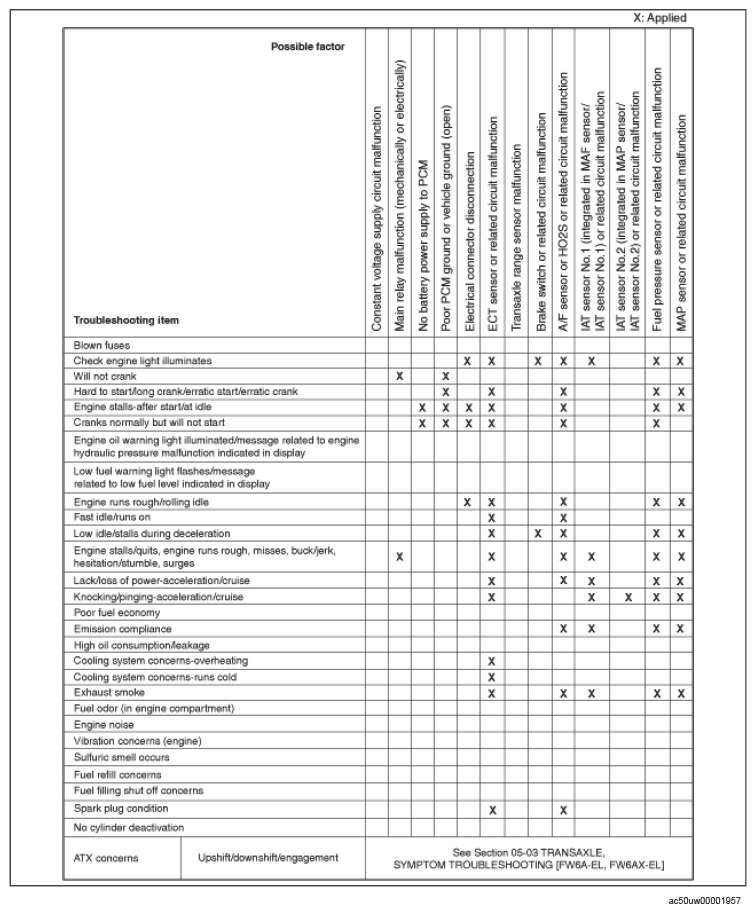

G15738808Courtesy of MAZDA MOTORS CORP.

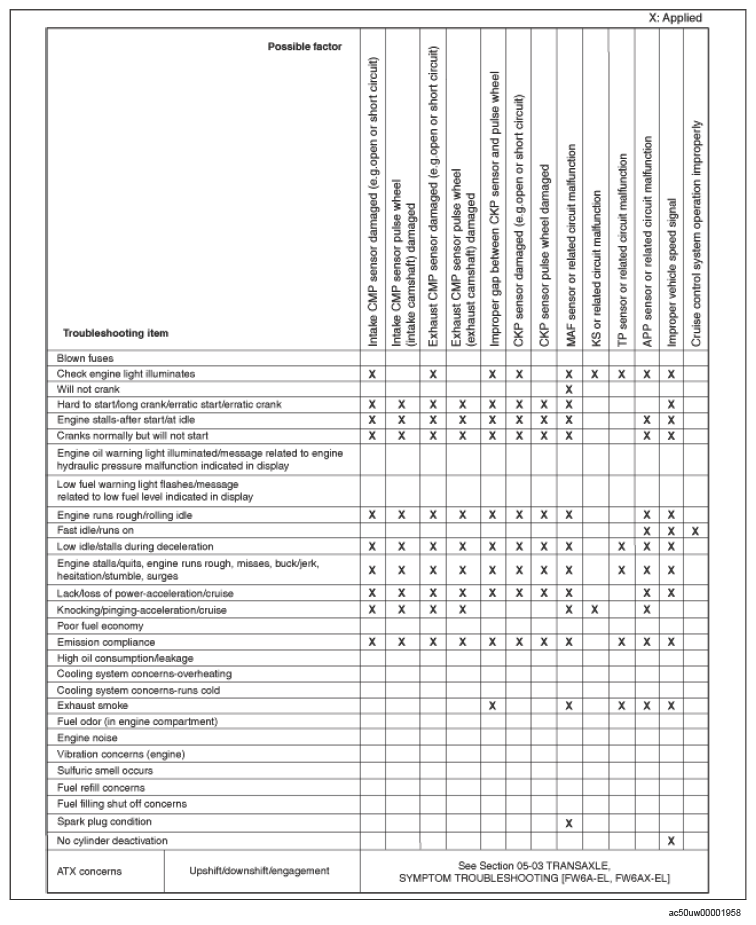

G15738809Courtesy of MAZDA MOTORS CORP.

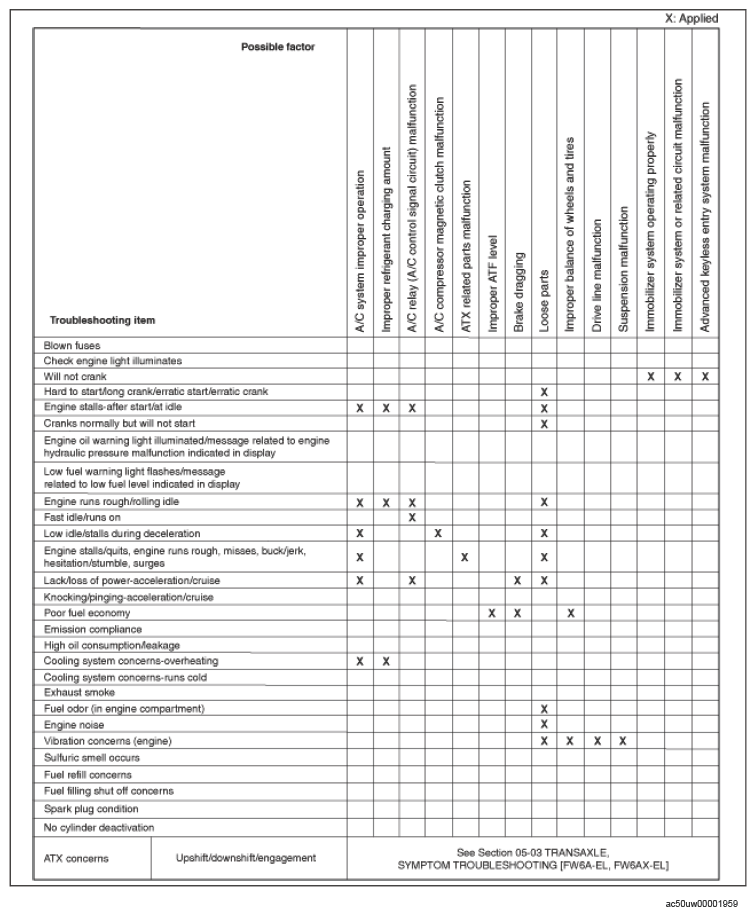

G15738810Courtesy of MAZDA MOTORS CORP.

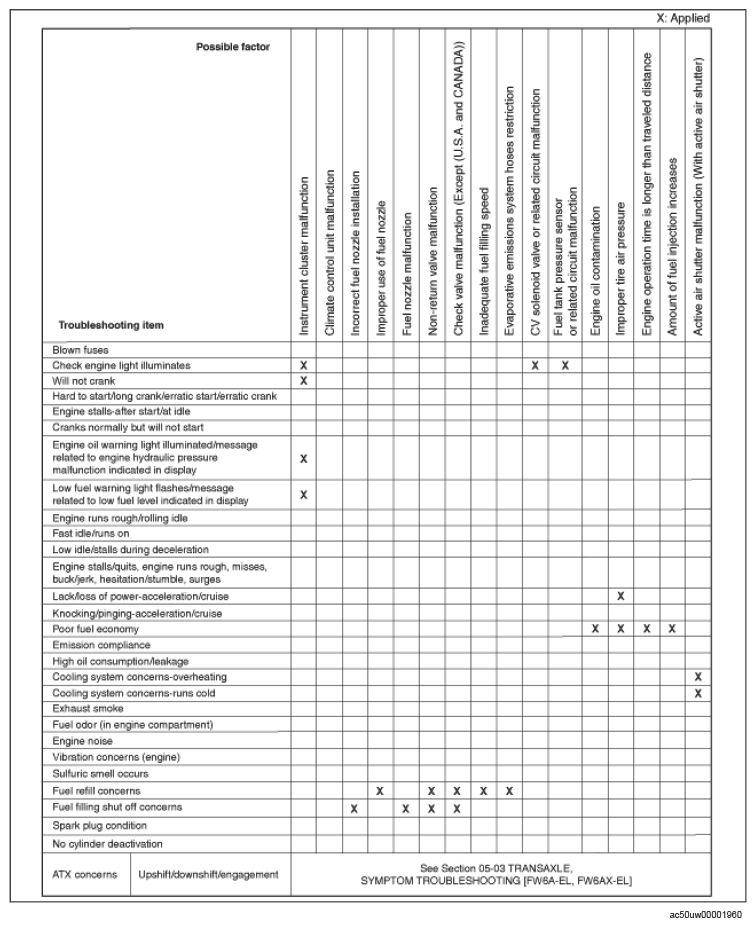

G15738811Courtesy of MAZDA MOTORS CORP.

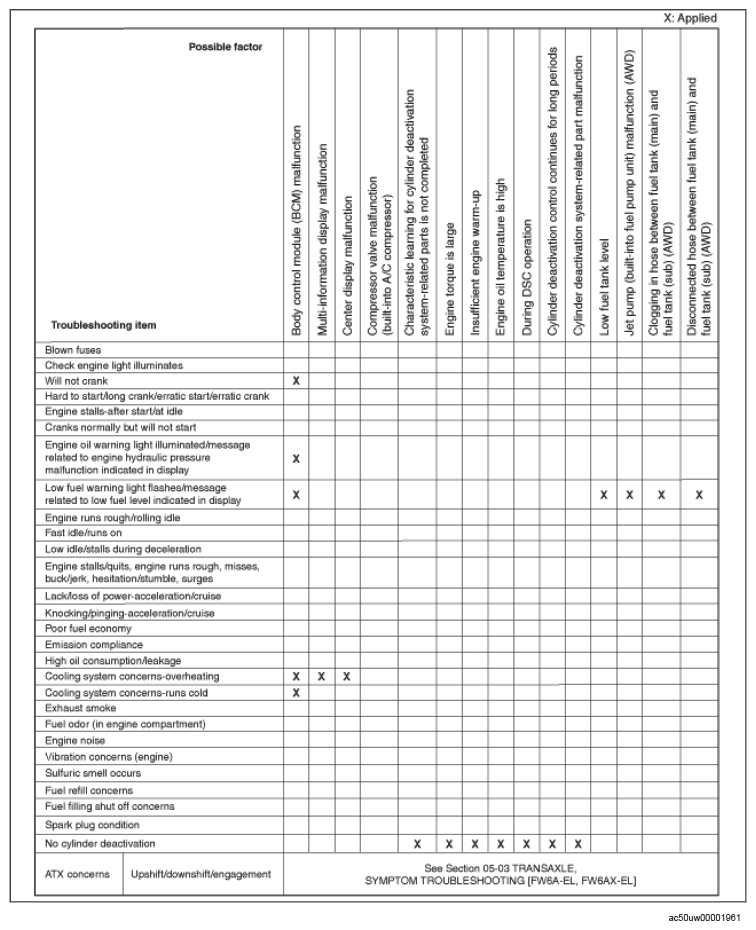

G15738812Courtesy of MAZDA MOTORS CORP.
