DTC B1088-88: Lin Communication Error [Front Body Control Module (FBCM)]: Notes
DTC B1088:88 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
LIN communication error |
| Detection condition |
- LIN bus communication line malfunction detected for 1 s or more
|
| Fail-safe |
Not applicable |
| Possible cause |
- Malfunction in LIN bus communication line

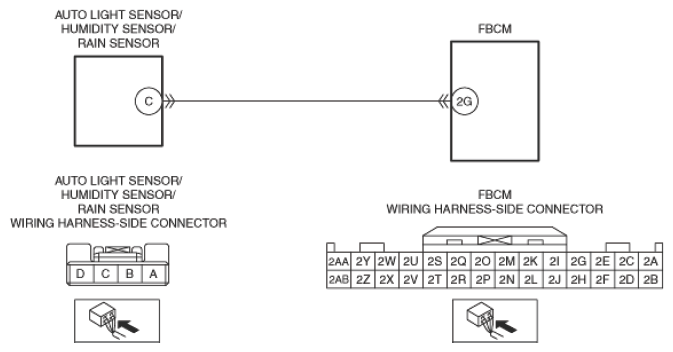

- Auto light sensor/humidity sensor/rain sensor terminal C-Front body control module (FBCM) terminal 2G (With auto light sensor/humidity sensor/rain sensor)
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
