Heated Steering Wheel System Location Index

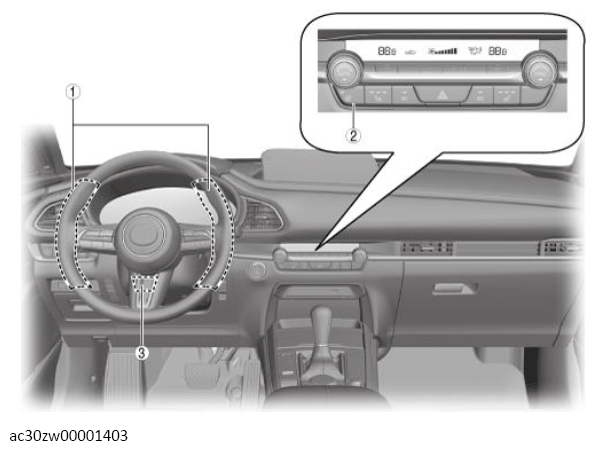

Fig 1: Heated Steering Wheel System Components Location

Courtesy of MAZDA MOTORS CORP.

HEATED STEERING WHEEL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Heated steering wheel unit (See HEATED STEERING WHEEL UNIT REMOVAL/INSTALLATION .)
2	Heated steering wheel switch (See HEATED STEERING WHEEL SWITCH REMOVAL/INSTALLATION .) (See HEATED STEERING WHEEL SWITCH INSPECTION .)
3	Heated steering wheel control unit (See HEATED STEERING WHEEL CONTROL UNIT REMOVAL/INSTALLATION .) (See HEATED STEERING WHEEL CONTROL UNIT INSPECTION .)
