DTC B1207-24: Event Notification Signal 2 Circuit Malfunction [MAZDA Emergency Assistance Control Module]: Outline

DTC B1207:24 (MAZDA EMERGENCY ASSISTANCE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

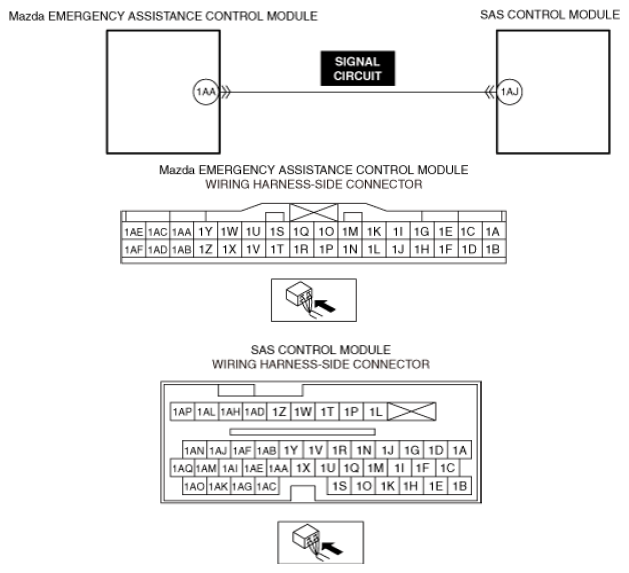

System malfunction location	Event notification signal 2 circuit malfunction
Detection condition	The Mazda EMERGENCY ASSISTANCE control module detects a short to power supply in the event notification signal 2 circuit.
Fail-safe	Not applicable
Possible cause	DTCs are stored in the SAS control module. SAS control module malfunction SAS control module connector or terminal malfunction Mazda EMERGENCY ASSISTANCE control module connector or terminal malfunction Short to power supply in SAS control module signal circuit Mazda EMERGENCY ASSISTANCE control module malfunction
