Audio Control Unit: Construction

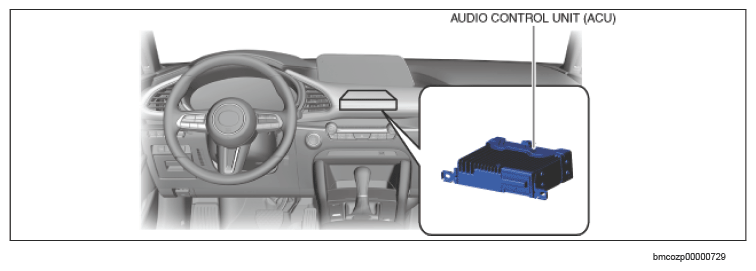

The audio control unit (ACU) is located centrally inside the dashboard.
The audio control unit (ACU) has an integrated Bluetooth ® and Wi-Fi driver and antenna.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
