360° View Monitor System Screen Display Verification Procedure

Perform the preparation before servicing. (See PREPARATION BEFORE SERVICING .)
Position the white lines at the positions shown in the figure below.

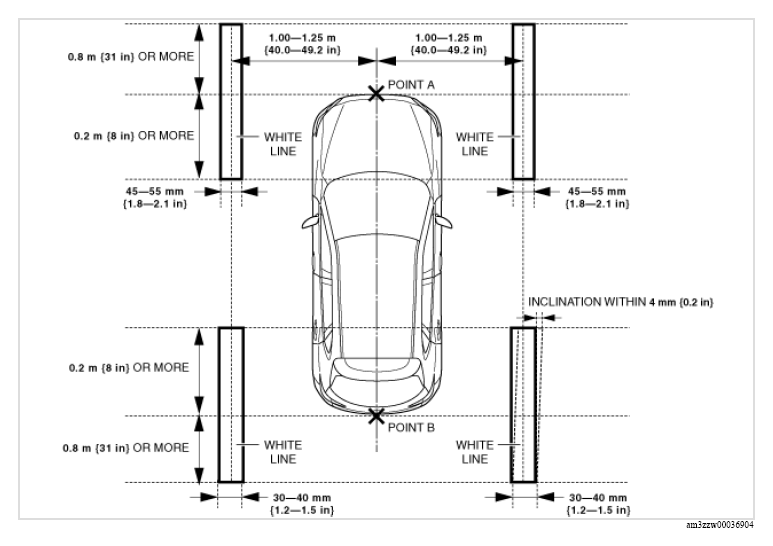

If all the cameras are verified

Courtesy of MAZDA MOTORS CORP.

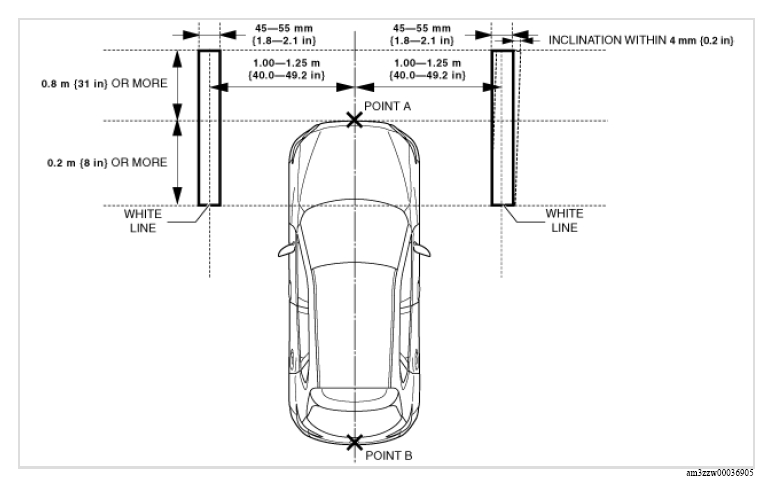

If the front camera is verified

Courtesy of MAZDA MOTORS CORP.

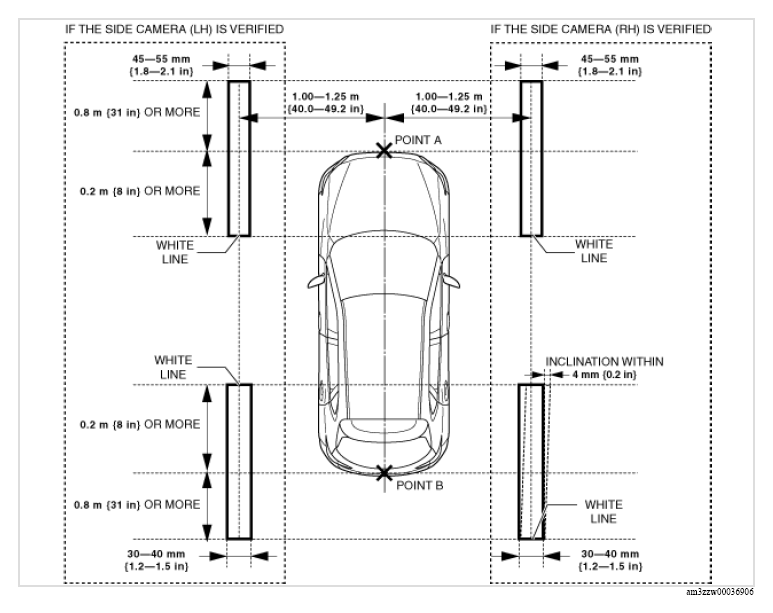

If the side camera is verified

Courtesy of MAZDA MOTORS CORP.

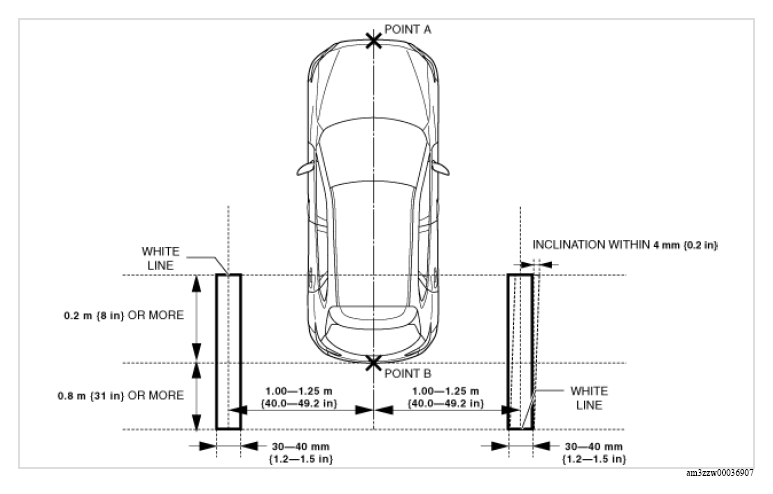

If the rear mount camera is verified

Courtesy of MAZDA MOTORS CORP.
NOTE:
- Use paper of 10 mm {0.39 in} thickness or less, or tape for the white lines.
Close all the doors (front door, rear door) and the trunk lid (4SD)/liftgate (5HB).
Verify that the outer mirrors are unfolded.
Operate the electric parking brake.
Shift the selector lever to the P position. (ATX)
Shift the shift lever to the neutral position. (MTX)
Switch the ignition ON (engine off or on).
Display the screen of the 360° view monitor system in the center display by pressing the 360° view monitor switch.

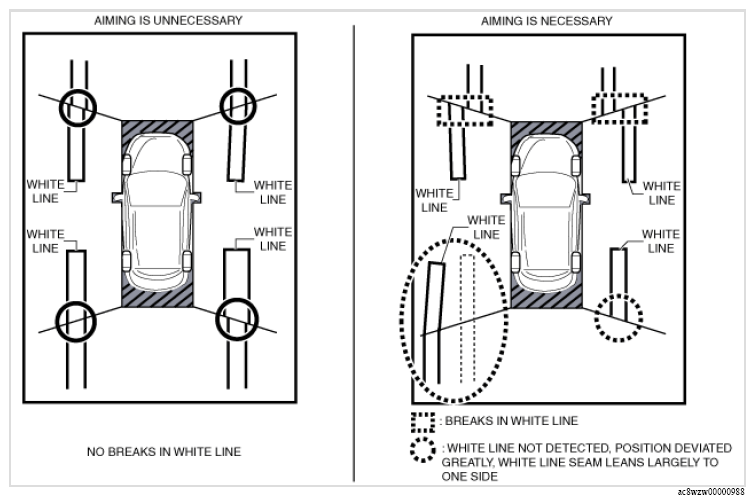

Verify that there are no breaks in the seams of the white lines in the display screen of the center display.

Courtesy of MAZDA MOTORS CORP.

If the projected vehicle path indication obscures the white lines, turn off the projected vehicle path indication.
If there are no breaks in the seams of the white lines, finish the 360° view monitor system aiming.
If there are breaks in the seams of the white lines, perform the 360° view monitor system aiming procedure. (See SELECTION OF PROCEDURE FOR 360° VIEW MONITOR SYSTEM AIMING .)
Verify the white line positions in the following cases.
- White lines cannot be found
- White line positions have deviated
- Seams of white lines lean largely to one side
  - If there is no problem with the positions of the white lines, perform the 360° view monitor system aiming. (See SELECTION OF PROCEDURE FOR 360° VIEW MONITOR SYSTEM AIMING .)
