EPS Control Module Removal Note

  1. Disconnect the torque sensor connector (EPS Control Module side).

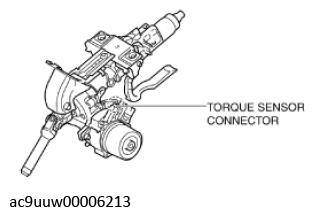

    G11438902Courtesy of MAZDA MOTORS CORP.
  2. Remove the EPS Control Module.
