Exterior Structural View

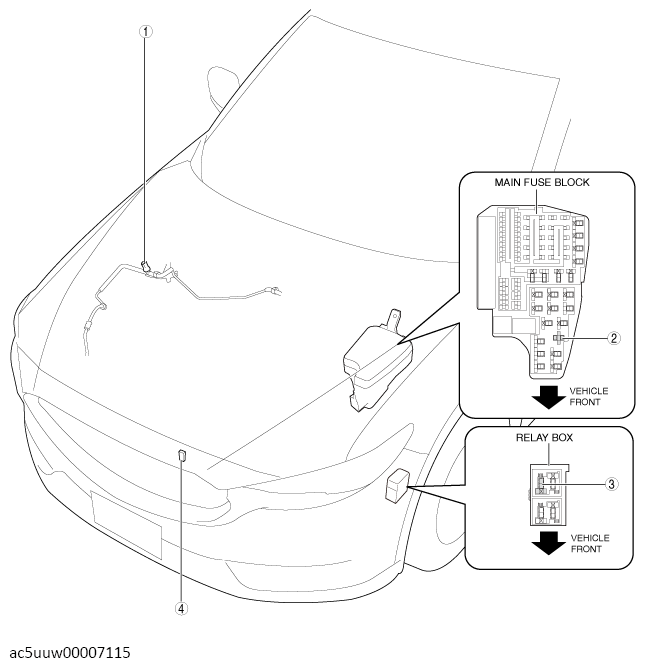

G14467794Courtesy of MAZDA
PART DESCRIPTION

1 Refrigerant pressure sensor
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) ).
(See REFRIGERANT PRESSURE SENSOR INSPECTION (AUTO A/C) ).
2 Blower relay
(See RELAY LOCATION ).
(See RELAY INSPECTION ).
3 A/C relay
(See RELAY LOCATION ).
(See RELAY INSPECTION ).
4 Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) ).
(See AMBIENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) ).
