Front Brake Mounting Support Removal/Installation (With 2-Piston Floating Caliper): Notes
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
Special service tool (SST)
| 49 G034 204 Support block |
Replacement Part
| Dust boot |
| Quantity: 2 |
| Location of use: Front brake mounting support |
Oil and Chemical Type
| Rubber grease (Pink) |
| Type: Cosmo rubber grease |
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

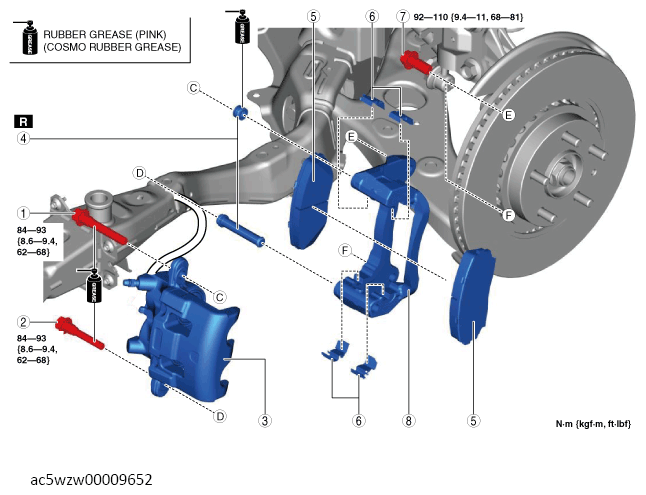

PARTS DESCRIPTION
| 1 | Bolt (main) |
| 2 | Bolt (sub) |
| 3 | Front brake caliper (See Front Brake Caliper Removal Note .) (See Front Brake Caliper Installation Note .) |
| 4 | Dust boot |
| 5 | Disc pad component |
| 6 | Guide plate |
| 7 | Bolt |
| 8 | Mounting support |
