Front Brake Caliper Disassembly/Assembly (With 2-Piston Floating Caliper): Notes

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Replacement Part

Dust seal	Piston seal
Quantity: 1	Quantity: 1
Location of use: Caliper body	Location of use: Piston

Oil and Chemical Type

Brake fluid type	Rubber grease (Pink)
Type: SAE J1703 or FMVSS116 DOT-3	Type: Cosmo rubber grease

Disassemble in the order indicated in the table.

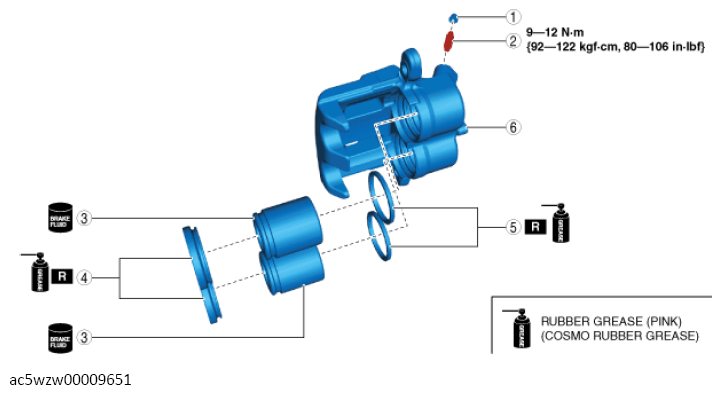

Fig 1: Front Brake Caliper Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Bleeder cap
2	Bleeder screw
3	Piston (See Piston Disassembly Note .)
4	Dust seal
5	Piston seal
6	Caliper body

Assemble in the reverse order of removal.
