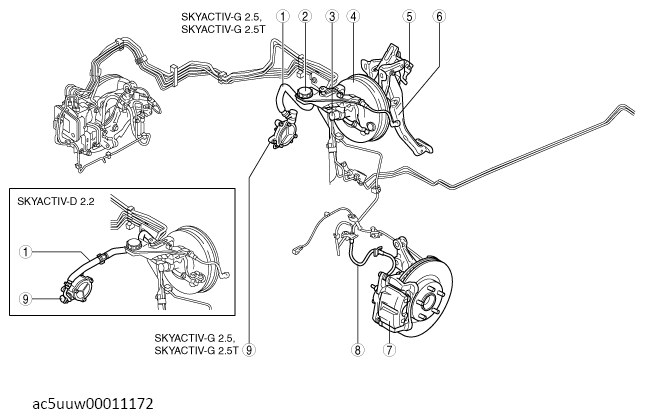

PARTS DESCRIPTION

1	Vacuum line (See VACUUM LINE INSPECTION (VIN M) .) (See VACUUM LINE INSPECTION (VIN Y) .) (See VACUUM HOSE REMOVAL/INSTALLATION [VIN M)] .) (See VACUUM HOSE REMOVAL/INSTALLATION (VIN Y) .)
2	Brake fluid (See BRAKE FLUID INSPECTION .) (See BRAKE FLUID AIR BLEEDING .)
3	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION .) (See BRAKE FLUID LEVEL SENSOR INSPECTION .)
4	Power brake unit (See POWER BRAKE UNIT INSPECTION .) (See POWER BRAKE UNIT REMOVAL/INSTALLATION .)
5	Brake switch (See BRAKE SWITCH INSPECTION .)
6	Brake pedal (See BRAKE PEDAL INSPECTION .) (See BRAKE PEDAL REMOVAL/INSTALLATION .)
7	Front brake (See FRONT BRAKE INSPECTION .) (See FRONT BRAKE DISC REMOVAL/INSTALLATION (WITH SINGLE PISTON FLOATING CALIPER) .) (See FRONT BRAKE DISC REMOVAL/INSTALLATION (WITH 2-PISTON FLOATING CALIPER) .) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION (WITH SINGLE PISTON FLOATING CALIPER) .) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION (WITH 2-PISTON FLOATING CALIPER) .) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION (WITH SINGLE PISTON FLOATING CALIPER) .) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION (WITH 2-PISTON FLOATING CALIPER) .) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY (WITH SINGLE PISTON FLOATING CALIPER) .) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY (WITH 2-PISTON FLOATING CALIPER) .) (See FRONT BRAKE HOSE REMOVAL/INSTALLATION (WITH SINGLE PISTON FLOATING CALIPER) .) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION (WITH 2-PISTON FLOATING CALIPER) .)
8	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION (WITH SINGLE PISTON FLOATING CALIPER) .) (See FRONT BRAKE HOSE REMOVAL/INSTALLATION (WITH 2-PISTON FLOATING CALIPER) .)
9	Vacuum pump (See VACUUM PUMP INSPECTION .) (See VACUUM PUMP REMOVAL/INSTALLATION (VIN M) .) (See VACUUM PUMP REMOVAL/INSTALLATION (VIN Y) .)
