Clearance Inspection

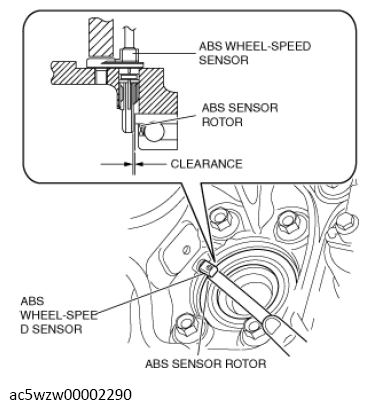

1. Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.

Courtesy of MAZDA MOTORS CORP.

• If not within the specification, verify the following items and repair or replace if necessary.
  • Is there deformation or damage to the ABS sensor rotor?
  • Is there deformation or damage to the ABS wheel speed sensor?
  • Is there foreign material adhering?

Clearance

0. 87-1.53 mm {0.035-0.060 in}
