360° View Monitor System Screen Display Verification Procedure

Perform the preparation before servicing. (See Preparation Before Servicing ).
Place white lines (paper or tape of 10 mm {0.39 in} or less) at the positions shown in the figure.

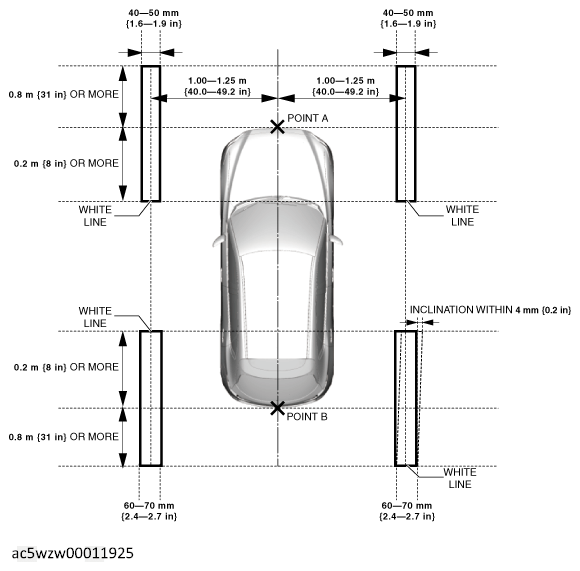

If all the cameras are verified

Courtesy of MAZDA MOTORS CORP.

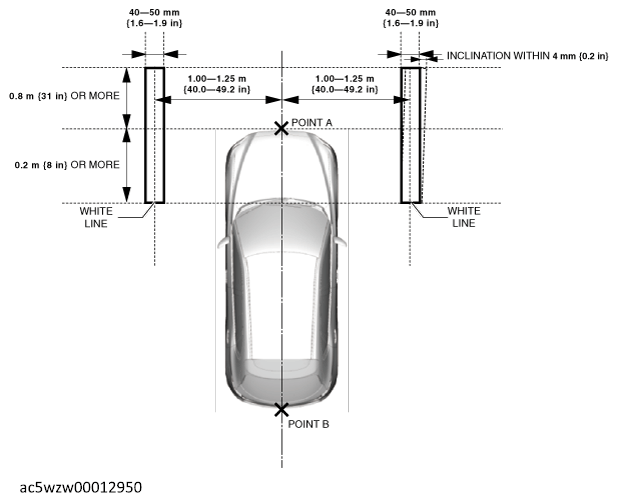

If the front camera is verified

Courtesy of MAZDA MOTORS CORP.

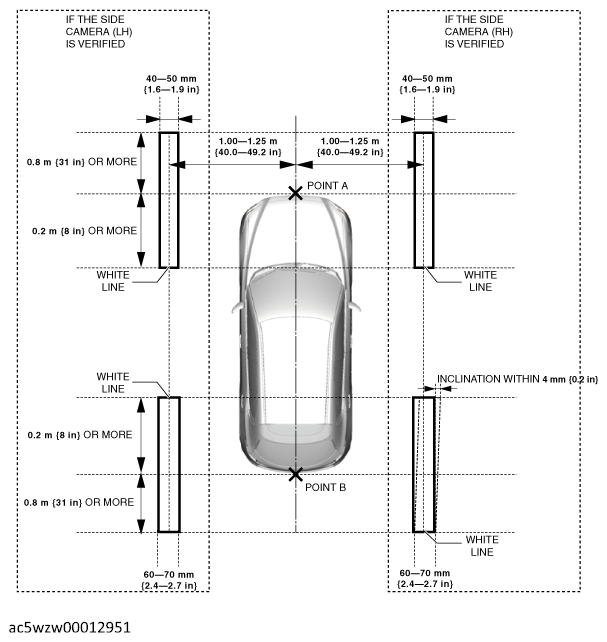

If the side camera is verified

Courtesy of MAZDA MOTORS CORP.

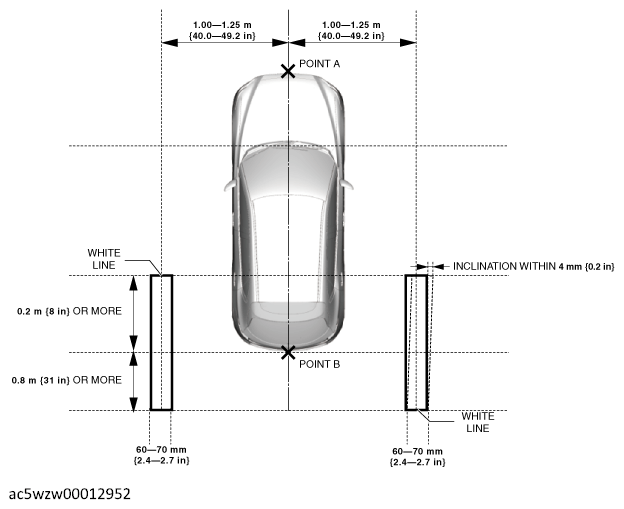

If the rear mount camera is verified

Courtesy of MAZDA MOTORS CORP.
Verify that all the doors (front door, rear door) and the liftgate are closed.
Verify that the outer mirrors are unfolded.
Operate the electric parking brake.
Shift the selector lever to the P position. (ATX)
Switch the ignition ON (engine off or on).
Display the screen of the 360° view monitor system in the center display by pressing the 360° view monitor switch.

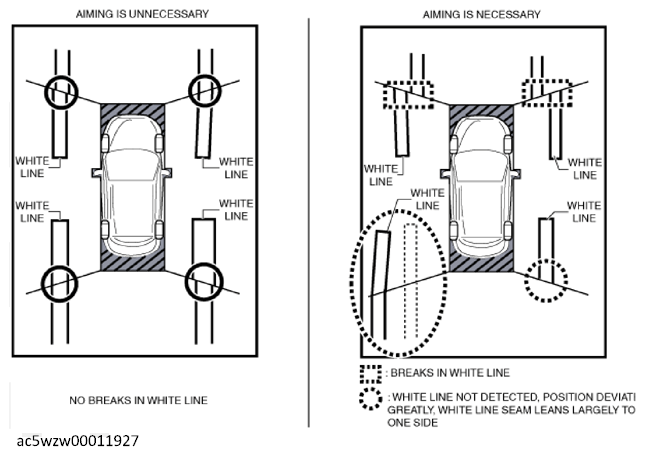

Verify that there are no breaks in the seams of the white lines in the display screen of the center display.

Courtesy of MAZDA MOTORS CORP.

If the projected vehicle path indication obscures the white lines, turn off the projected vehicle path indication.
If there are no breaks in the seams of the white lines, finish the 360° view monitor system aiming.
If there are breaks in the seams of the white lines, perform the 360° view monitor system aiming procedure. (See 360° View Monitor System Aiming Procedure Selection ).
Verify the white line positions in the following cases.
- White lines cannot be found
- White line positions have deviated
- Seams of white lines lean largely to one side
If there is no problem with the positions of the white lines, perform the 360° view monitor system aiming. (See 360° View Monitor System Aiming Procedure Selection ).
