Dust Cover Disassembly Note

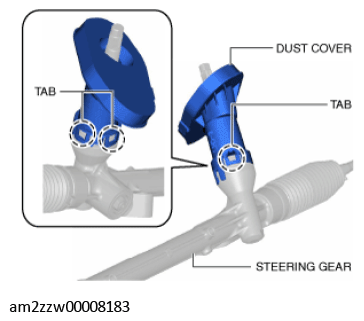

  1. Disengage the dust cover tabs shown in the figure from the steering gear.
    G11438043Courtesy of MAZDA MOTORS CORP.
  2. Remove the dust cover from the steering gear.
