Protector Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip from the protector.
    G14579399Courtesy of MAZDA MOTORS CORP.

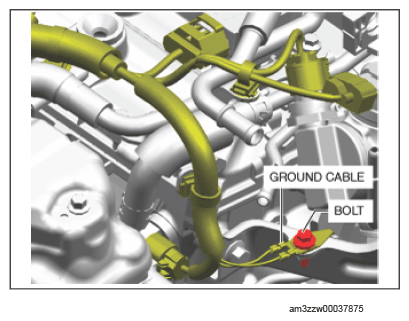

  2. Remove the ground cable from the protector.
    G14579400Courtesy of MAZDA MOTORS CORP.
  3. Remove the protector.
