Fork Installation Note

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

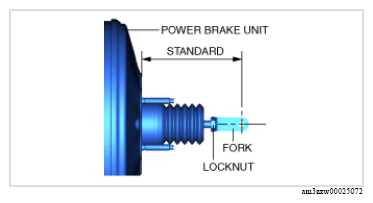

  1. Install the fork as shown in the figure.
G13176203Courtesy of MAZDA MOTORS CORP.

Standard
