Bolt Installation Note

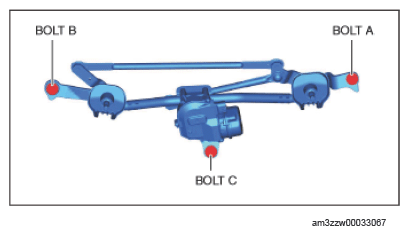

  1. Temporarily tighten bolt A.
    G14584277Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten bolt B.
  3. Completely tighten bolt A.
  4. Completely tighten bolt C.
