Bolt Removal/Installation Note

  1. When removing or installing the bolt, lock the A/C compressor pulley against rotation using the following procedure.
CAUTION:
  • When connecting the positive battery terminal to the magnetic clutch connector, use a cable with a female terminal of the correct size. Otherwise, load will be applied to the terminal, resulting in deformation or damage, and poor contact. In addition, the positive battery terminal could disconnect from the connector resulting in a short circuit.

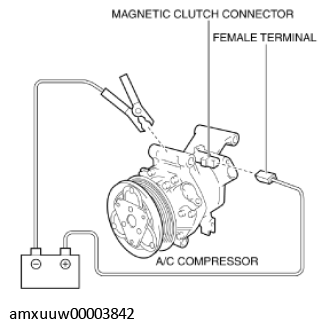

  1. Apply battery positive voltage to the magnetic clutch connector and connect the A/C compressor to the ground.
    G11276246Courtesy of MAZDA MOTORS CORP.

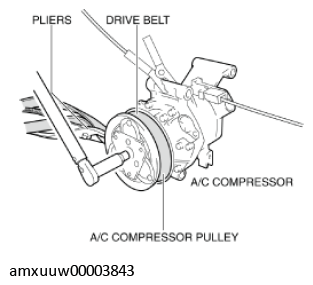

  2. Wrap the drive belt, which is no longer of use, tightly around the A/C compressor pulley.
    G11276247Courtesy of MAZDA MOTORS CORP.
  3. Hold the drive belt in place with pliers.
  4. Remove/installation the bolt.
