Wiper/Washer System Location Index

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

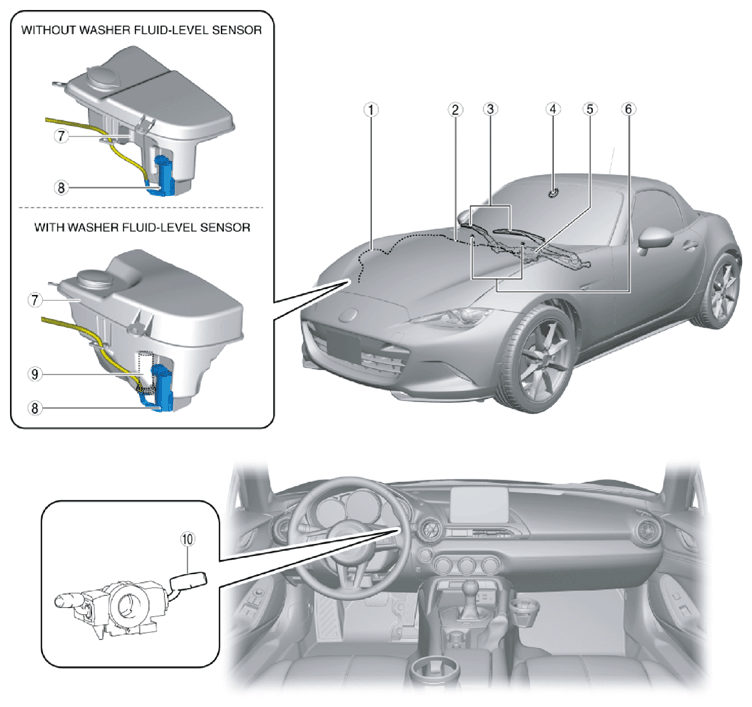

Fig 1: Wiper/Washer System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Washer hose A (See WASHER HOSE REMOVAL/INSTALLATION .)
2	Washer hose B (See WASHER HOSE REMOVAL/INSTALLATION .)
3	Wiper arm and blade (See WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See WIPER ARM AND BLADE ADJUSTMENT .)
4	Rain sensor (with auto wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .) (See RAIN SENSOR INITIALIZATION SETTING .) (See WIPER/WASHER PERSONALIZATION FEATURES SETTING PROCEDURE .)
5	Wiper motor and link (See WIPER MOTOR AND LINK REMOVAL/INSTALLATION .) (See WIPER MOTOR INSPECTION .)
6	Washer nozzle (See WASHER NOZZLE REMOVAL/INSTALLATION .) (See WASHER NOZZLE ADJUSTMENT .)
7	Washer tank (See WASHER TANK REMOVAL/INSTALLATION .)
8	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION .) (See WASHER MOTOR INSPECTION .)
9	Washer fluid-level sensor (with washer fluid-level sensor) (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .) (See WASHER FLUID-LEVEL SENSOR INSPECTION .)
10	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .) (See WIPER AND WASHER SWITCH INSPECTION .)
