A/C Compressor Pulley Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Set the SST (49 B034 212) as shown in the figure.

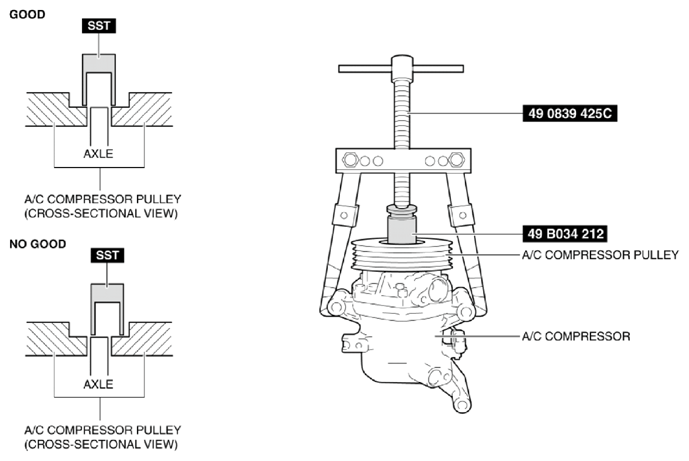

Fig 1: Setting SST (49 0839 425C)
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the SST is not properly positioned when the A/C compressor pulley is press-fit, the A/C compressor axle will interfere with the SST, possibly damaging component parts. Verify the SST and axle are properly positioned and perform the procedure very carefully.
Install the inner wheel of the A/C compressor pulley using SST (49 0839 425C, 49 B034 212) to the compressor.
NOTE:
- Wrap protective tape around the tabs of the SST (49 0839 425C) so that the A/C compressor pulley is not scratched.

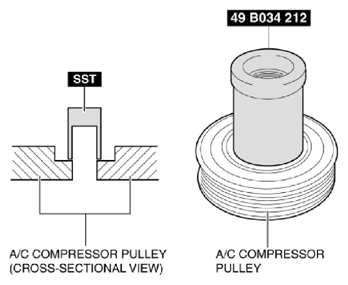

Fig 2: Caution For Installing A/C Compressor Pulley Inner Wheel
Courtesy of MAZDA MOTORS CORP.
