DTC U0074-00: Can System Communication Error (Local Can Between Pcm And TCM): Notes

DTC U0074:00 (PCM, SKYACTIV-G 2.0) DETECTION CONDITION AND POSSIBLE CAUSE

DTC U0074:00	CAN system communication error (local CAN between PCM and TCM)
DETECTION CONDITION	Malfunction in CAN bus communication line. Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
Fail-safe function	Not applicable

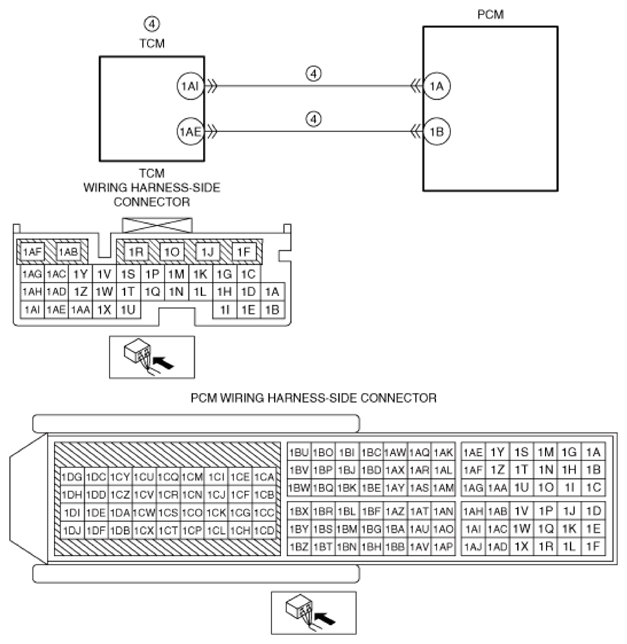

Possible cause	CAN communication line malfunction between PCM and TCM (local CAN between PCM and TCM) TCM terminal 1AI-PCM terminal 1A TCM terminal 1AE-PCM terminal 1B TCM DTC is stored. PCM malfunction TCM malfunction
Courtesy of MAZDA MOTORS CORP.
