Switch The Power Supply Using The Push Button Start And Start The Engine

• Based on the push button start signals, the start stop unit switches the power supply circuit by turning on/off the relay according to the vehicle conditions such as the position of the selector lever (AT)/shift lever (MT) and depression/release of the brake pedal (AT)/clutch pedal (MT).

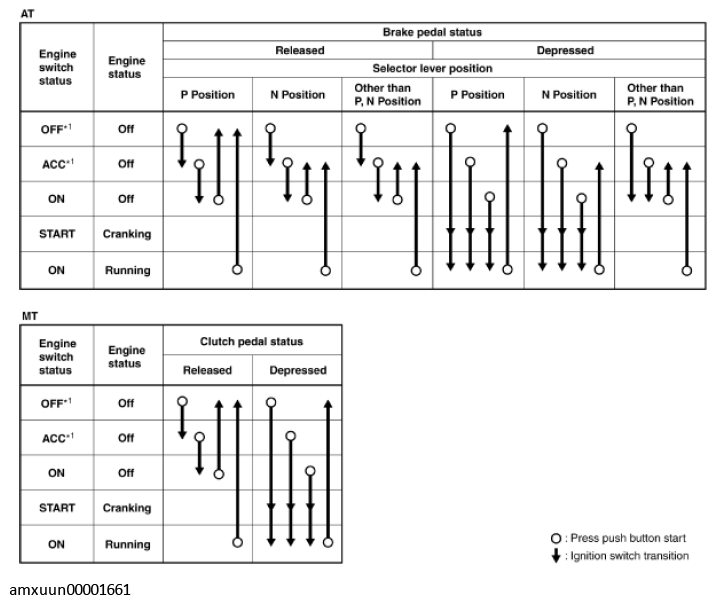

• By pressing the push button start under the conditions shown in the figure, the ignition can be switched.

  Courtesy of MAZDA MOTORS CORP.

*1: To switch the ignition to ACC or OFF from ON (engine on), the vehicle speed must be 5 km/h {3 mph} or less.
