When using M-MDS

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the M-MDS to the DLC-2.
  2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
    1. Select "DataLogger".
    2. Select "Modules".
    3. Select "IC".
  3. Using the simulation function item LCD_SEG, verify that the warning/indicator lights are displayed as shown in the following figure.

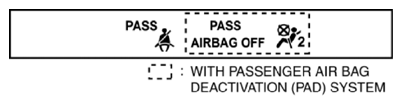

Fig 1: Screen Display - PASS AIRBAG OFF
G10955118Courtesy of MAZDA MOTORS CORP.
