Quick Release Connector Installation Note
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

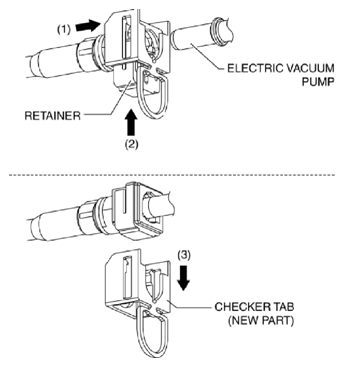

- Install the quick release connector as shown in the figure.
- If the retainer cannot be pushed down, push the electric vacuum pump further to the quick release connector.
- Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
