On-Board Diagnostic - Retractable Fastback Control Module
>>

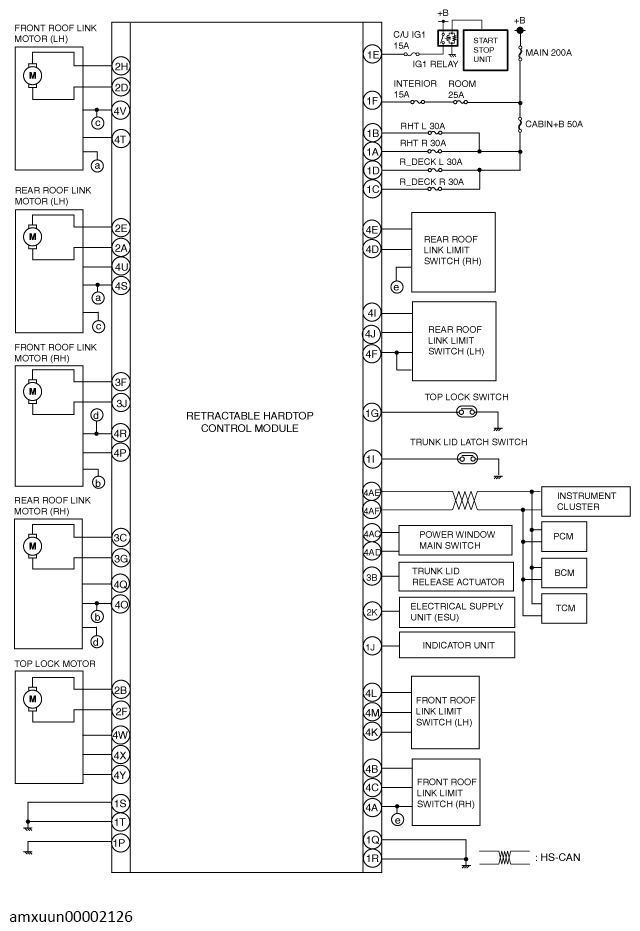

On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
