DTC P1887-11/P1887-12/P1887-13/P1887-14: System Wiring [AWD Control Module]: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P1887:11/P1887:12/P1887:13/P1887:14 (AWD CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

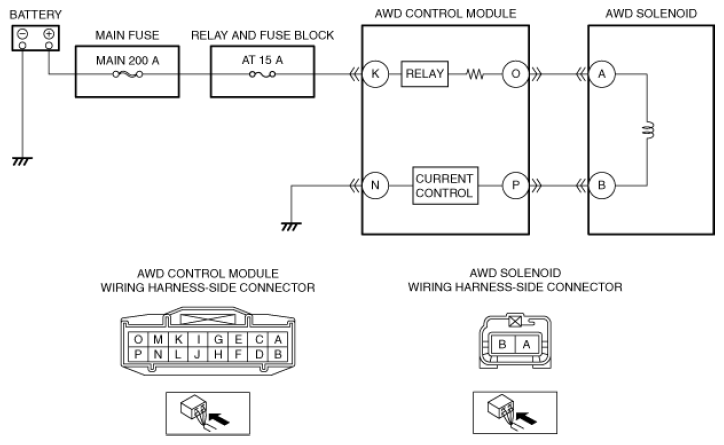

DTC P1887:11	System wiring
DTC P1887:12
DTC P1887:13
DTC P1887:14
DETECTION CONDITION	P1887:11 Short circuit to ground is detected in AWD solenoid circuit P1887:12 Short to power supply circuit is detected in AWD solenoid circuit P1887:13 Open circuit is detected in AWD solenoid circuit P1887:14 Open circuit or short to ground is detected in power supply circuit
FAIL-SAFE FUNCTION	Refer to "Fail-safe function table". (See DTC TABLE [AWD CONTROL MODULE] .)
POSSIBLE CAUSE	AWD solenoid malfunction Open or short to ground circuit in wiring harness between AWD control module terminal O and AWD solenoid terminal A Open or short to ground circuit in wiring harness between AWD control module terminal P and AWD solenoid terminal B Open or short to ground circuit in wiring harness between battery and AWD control module terminal K AWD control module malfunction Fuse (AT 15A) malfunction Poor connection at each connector
Courtesy of MAZDA MOTORS CORP.
