Manual Air Conditioner: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

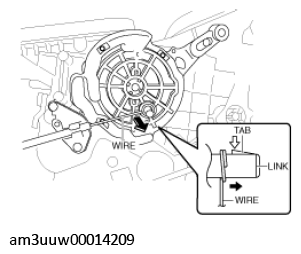

Press the tab down, then slide the wire off the link.

Fig 1: Removing Manual Air Conditioner Glove Compartment
Courtesy of MAZDA MOTORS CORP.
Remove the screw, then airflow mode main link.

Fig 2: Removing Airflow Mode Main Link Screw
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See AIRFLOW MODE MAIN LINK INSTALLATION NOTE .)
