Daytime Running Light (DRL) System (Except Canada)
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
| Function | Initial setting | Setting contents | Control module |
|---|---|---|---|
| The daytime running light (DRL) system function can be set. | On (daytime running light (DRL) illumination) | Off (daytime running light (DRL) non-illumination)/On (daytime running light (DRL) illumination) | Front body control module (FBCM) |

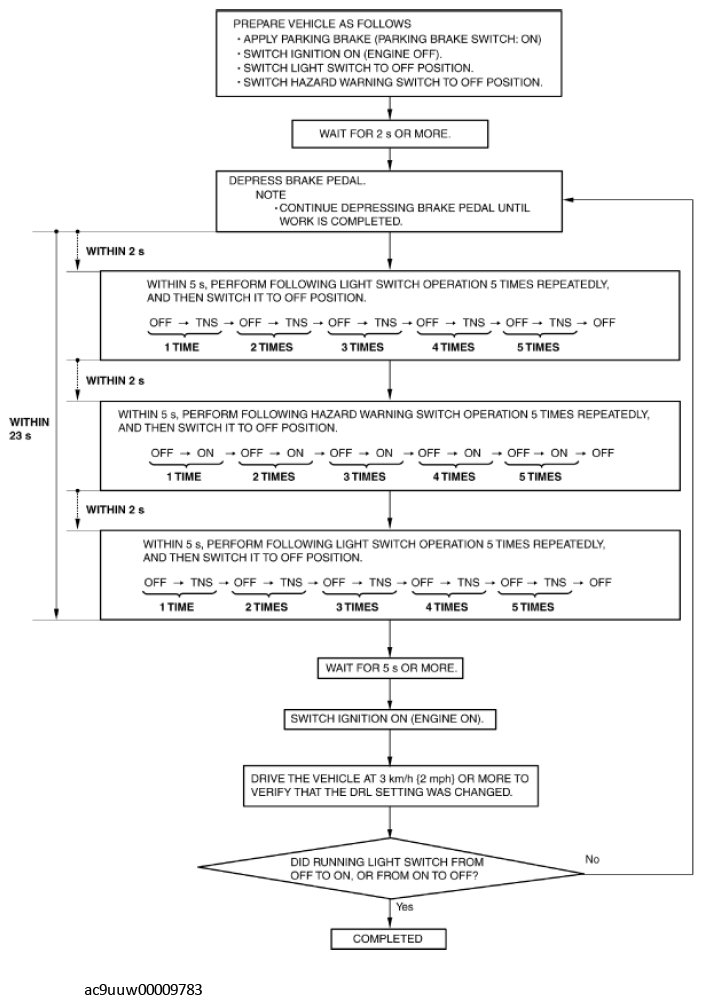

- Perform the following procedure to change the daytime running light (DRL) illumination/non-illumination setting.NOTE:
- Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
