Power Liftgate (PLG) Rear Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Insert remover tool into the position shown in the figure, and detach the cover tab from the liftgate.

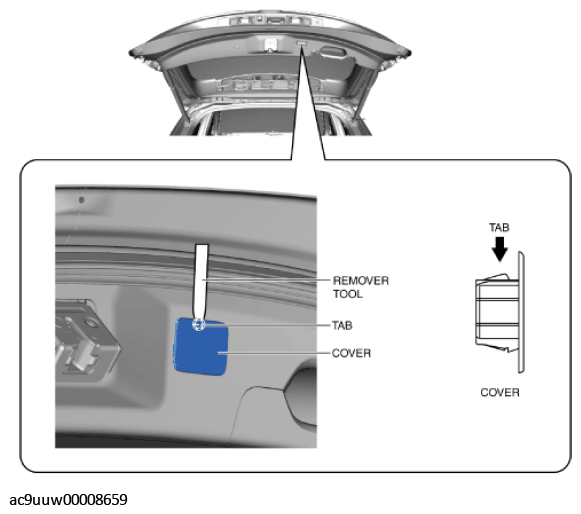

    Fig 1: Detaching Cover Tab From Liftgate
    G11430930Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector.

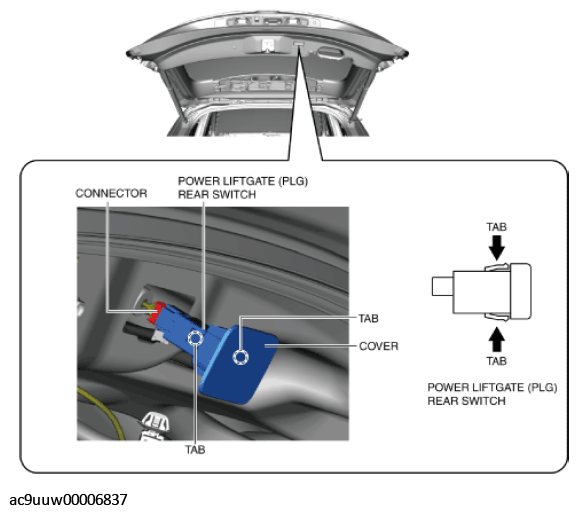

    Fig 2: Pressing Power Liftgate Rear Switch Tabs
    G11430931Courtesy of MAZDA MOTORS CORP.
  4. Press the power liftgate (PLG) rear switch tabs in the direction of the arrow shown in the figure and detach the power liftgate (PLG) rear switch from the cover.
  5. Remove the power liftgate (PLG) rear switch.
  6. Install in the reverse order of removal.
