On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System - MEXICO Spec.)]

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

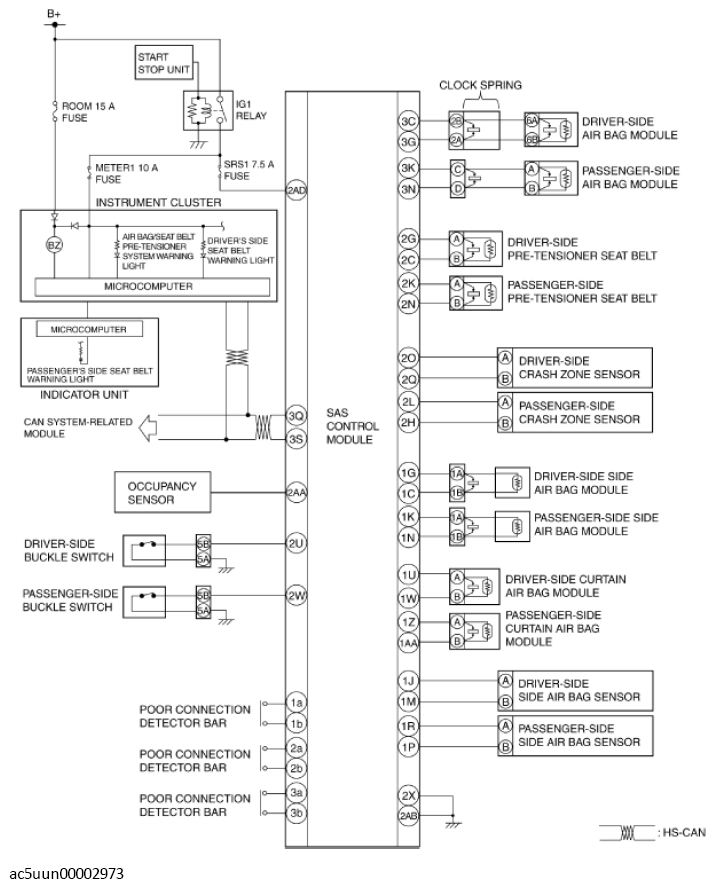

Fig 1: SAS Control Module On-Board Diagnostic Circuit Diagram
G11428558Courtesy of MAZDA MOTORS CORP.
Fig 2: SAS Control Module Harness-Side Connector Terminals
G11276686Courtesy of MAZDA MOTORS CORP.
