HVAC Control System Location Index (Manual A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

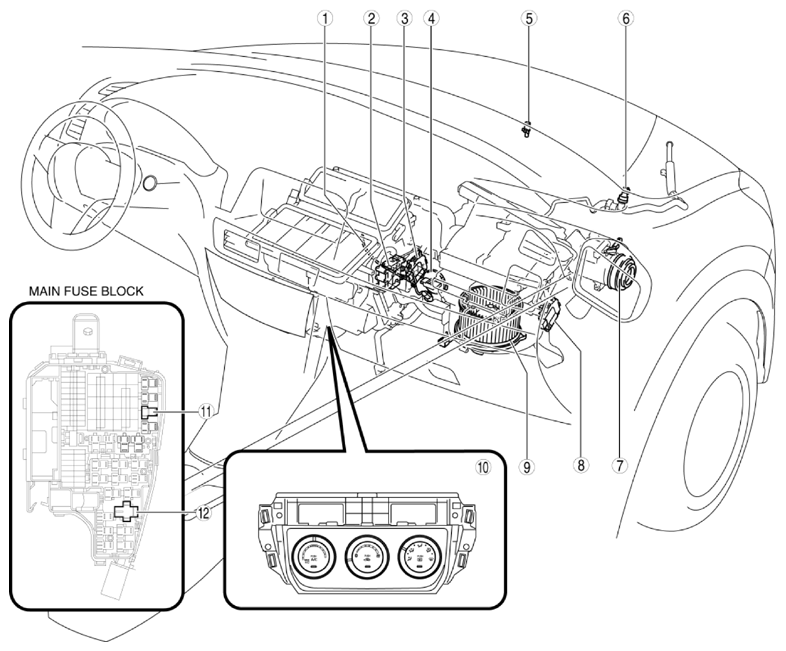

Fig 1: HVAC Control System Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION (MANUAL A/C) .)
2	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIRFLOW MODE ACTUATOR INSPECTION (MANUAL A/C) .)
3	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIR MIX ACTUATOR INSPECTION (MANUAL A/C) .)
4	Blower fan controller (See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION (MANUAL A/C) .) (See BLOWER FAN CONTROLLER INSPECTION (MANUAL A/C) .)
5	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AMBIENT TEMPERATURE SENSOR INSPECTION (MANUAL A/C) .)
6	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION (MANUAL A/C) .)
7	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (MANUAL A/C) .) (See MAGNETIC CLUTCH ADJUSTMENT (MANUAL A/C) .) (See MAGNETIC CLUTCH INSPECTION (MANUAL A/C) .)
8	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIR INTAKE ACTUATOR INSPECTION (MANUAL A/C) .)
9	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See BLOWER MOTOR INSPECTION (MANUAL A/C) .)
10	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (MANUAL A/C) .) (See CLIMATE CONTROL UNIT INSPECTION (MANUAL A/C) .)
11	A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
12	Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
