Ambient Temperature Sensor Removal/Installation (Auto A/C)

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

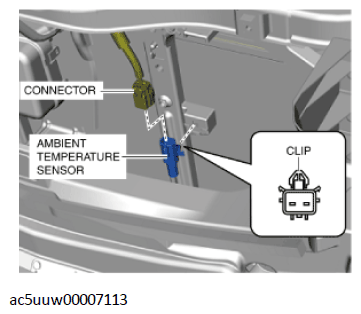

    Fig 1: Removing Connector From Ambient Temperature Sensor
    G11431878Courtesy of MAZDA MOTORS CORP.
  4. Detach the clip and remove the ambient temperature sensor.
  5. Install in the reverse order of removal.
