Home >> Mazda >> 2021 >> CX-5 Signature >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat Warmer Control Unit Inspection >> System Diagram

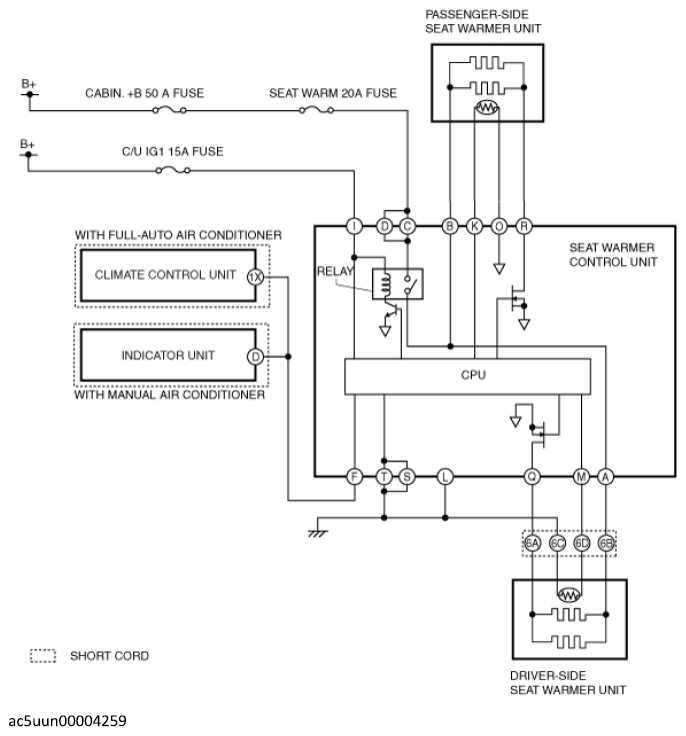

System Diagram

G12183927
