Blower Unit Disassembly/Assembly (Us)

CAUTION:
  • Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
  1. Disassemble in the order indicated in the table.

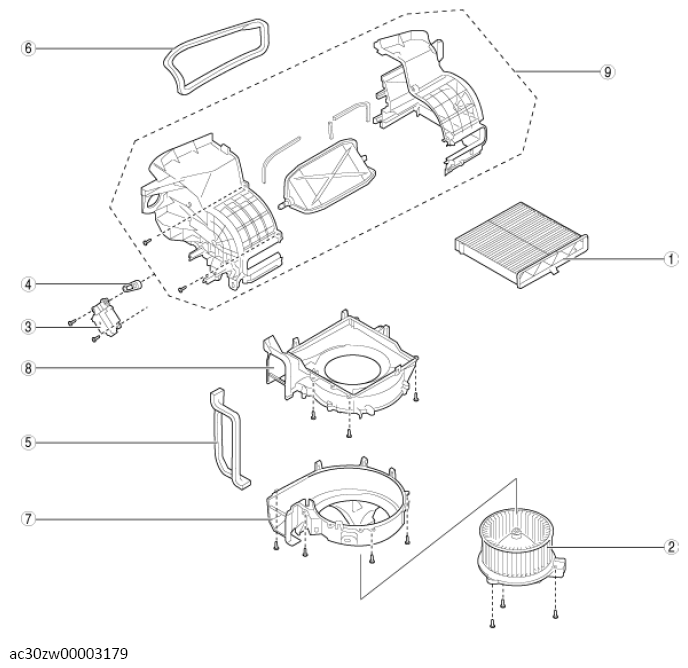

    G13740295Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Air filter
    2 Blower motor
    3 Air intake actuator
    4 Air intake link
    5 Polyurethane (1)
    6 Polyurethane (2)
    7 Blower case (2)
    8 Blower case (1)
    9 Blower case assembly
  2. Assemble in the reverse order of disassembly.
