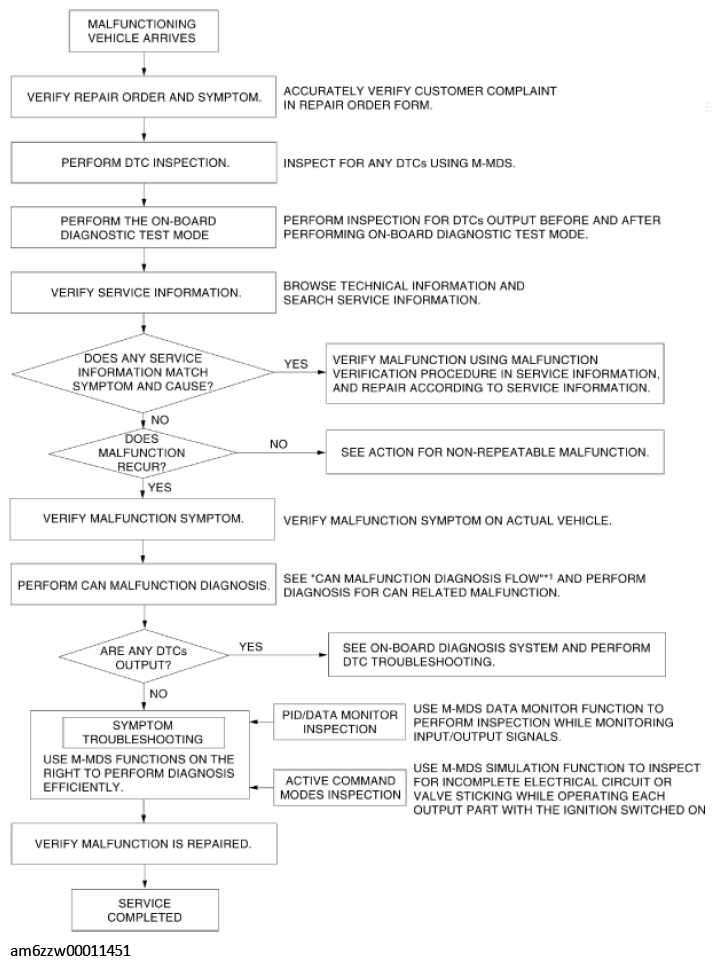

Troubleshooting Procedure

G11432072

Courtesy of MAZDA MOTORS CORP.

*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
