Front Lower Arm Ball Joint Installation Note

  1. Install the spacer to the steering knuckle before installing the front lower arm ball joint.

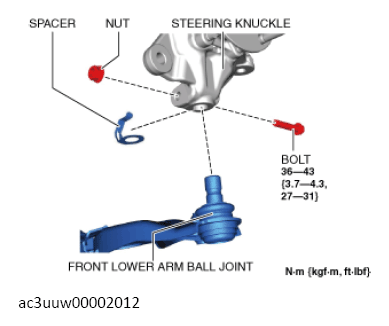

    Fig 1: Front Lower Arm Ball Joint Bolt With Torque Specification
    G13149887Courtesy of MAZDA MOTORS CORP.
  2. Install the front lower arm ball joint to the steering knuckle, insert the bolts in the same direction for the right and left, then tighten them to the specified torque.
