Connector Disconnect Note

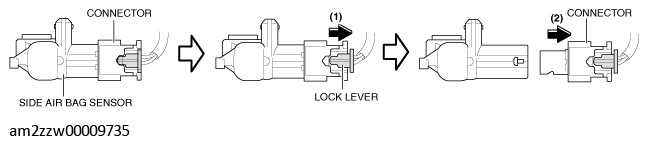

  1. Pull out the connector lock lever in the direction of arrow (1) shown in the figure.
    G11437855Courtesy of MAZDA MOTORS CORP.
  2. Move the connector in the direction of arrow (2) shown in the figure to disconnect it.
